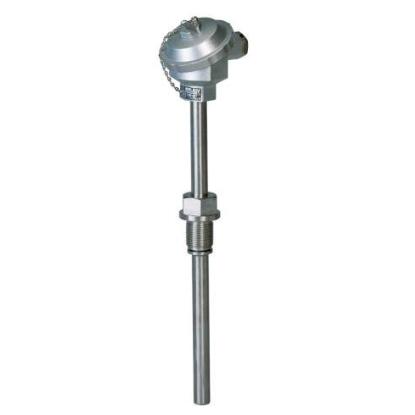

Waterproof Fixed Thread Assembly Thermocouple WRN-230 WRN-231

Waterproof Fixed Thread Assembly Thermocouple WRN-230 WRN-231 Brief Description

Waterproof Fixed Thread Assembly Thermocouple WRN-230 WRN-231 is with fixed thread connection,waterproof type,Assembly Thermocouple WRN-230 WRN-231 is used as a sensor to measure temperature, Assembly Thermocouple WRN-230 WRN-231 usually matched with display instruments, recording meter and electronic computer.Waterproof Fixed Thread Assembly Thermocouple WRN-230 WRN-231 can directly measure temperature from 0℃ to 1300℃ of liquid, vapor, gas medium and solid surface during various production processes. In addition, Waterproof Fixed Thread Assembly Thermocouple WRN-230 WRN-231 has the advantages of simple assembly, convenient replacement, pressure spring type temperature sensing element, good anti-vibration, wide measuring range, high mechanical strength, good pressure durability.

Waterproof Fixed Thread Assembly Thermocouple WRN-230 WRN-231 Main technical parameter

Temperature measurement range and tolerance

Note: “t” is absolute value of measured temperature of temperature-sensing element.

Waterproof Fixed Thread Assembly Thermocouple WRN-230 WRN-231 specification


WRN Series, Assembly type thermocouple Max. Temperature : 0℃～1300℃ (Working temperature 0℃～1000℃) Output signal No.Single
Base on Water proof (3) Splash proof type (2),Explosion proof (4) is for option.
Without fixed device (1)	Fixed threaded (2)	Movable flange (3)	Fixed flange (4)	Movable flange square (5)	Fixed thread conical (6)
Protection tube diameter 0:Φ16mm 1:Φ25mm 2:Φ16mm 3:Φ25mm	Protection tube diameter 0:Φ16mm 1:Φ25mm 2:Φ16mm 3:Φ25mm	Protection tube diameter 0:Φ16mm 1:Φ25mm 2:Φ16mm 3:Φ25mm	Protection tube diameter 0:Φ16mm 1:Φ25mm 2:Φ16mm 3:Φ25mm	Protection tube diameter 0:Φ16mm 1:Φ25mm 2:Φ16mm 3:Φ25mm	Protection tube diameter 0:Φ16mm 1:Φ25mm 2:Φ16mm 3:Φ25mm
Thermocouple WRN-130 WRN-131 WRN-132 WRN-133	Thermocouple WRN-230 WRN-231 WRN-232 WRN-233	Thermocouple WRN-330 WRN-331 WRN-332 WRN-333	Thermocouple WRN-430 WRN-431 WRN-432 WRN-433	Thermocouple WRN-530 WRN-531 WRN-532 WRN-533	Thermocouple WRN-630 WRN-631 WRN-632 WRN-633

Waterproof Fixed Thread Assembly Thermocouple WRN-230 WRN-231 Model

If the Waterproof Fixed Thread Assembly Thermocouple WRN-230 WRN-231 for sale caters to your requirement, welcome to buy with us. As one of the leading such manufacturers and suppliers in China, we will offer you cheap price and excellent services.
